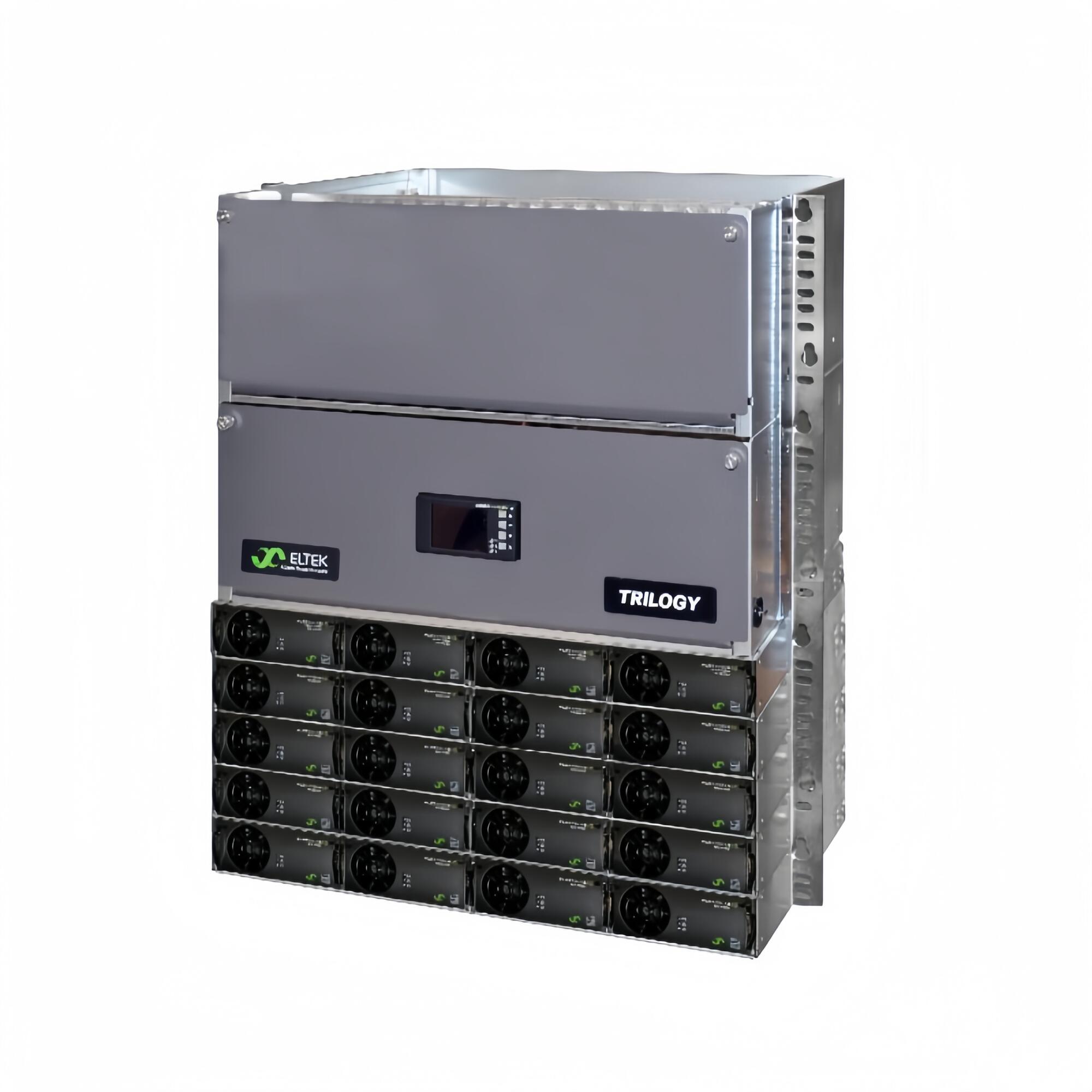

Eltek Trilogy with Smartpack S DC Power System 600A
5.4kW
Trilogy with Smartpack S DC Power System
The Eltek Trilogy DC power system, powered by the Flatpack2 line of power modules, brings 250A − 600A to applications where space is limited. Use of the highlyefficient and reliable Flatpack2 rectifier, remarkably flexible distribution, and the advanced Smartpack S controller make for optimal system design and costeffective deployment.
APPLICATIONS
The Eltek Trilogy system is a highefficiency power solution with an optimal footprint for 250A to 600A applications where space is limited − both in typical racks and some cabinet installations.
The Trilogy system can power both singlevoltage telecommunication infrastructure (such as −48V LTE or +24V legacy TDMA), as well as dual-voltage sites (e.g., where both −48V and +24V equipment coexist). DC-to-DC converters are available for converting 24V to 48V (or vice-versa) within a single Trilogy system.
PRODUCT DESCRIPTION
The Trilogy system is designed for use in rack spaces and cabinets. Both 19" and 23" rack widths are available.
Powered by Flatpack2 HE rectifier modules, typical efficiency exceeds 95% at both 24 VDC and 48 VDC output. Flatpack2 DC-to-DC converters can also be added within the same system footprint.
The distribution section features unique circuit breaker holders that facilitate atwill assignment in the field to one of two output buses. Bulk cable connections are available in the rear of the distribution. All cabling is vertical, further reducing horizontal space demands.
